| 3,5 X 40 (T10) | 3.5 | 40 | 5.4 | 2.8 | 29 | 10 |
| 500 | | |

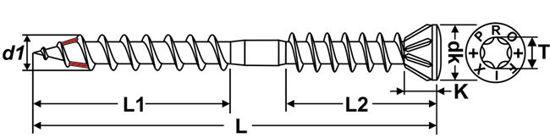

| | T-Drive | 10 | | d1 mm | 3.5 | | L mm | 40 | | dk mm | 5.4 | | K mm | 2.8 | | h min mm | 29 | | t fix max mm | 16 |
| | | | |
| 3,5 X 50 (T10) | 3.5 | 50 | 5.4 | 2.8 | 35 | 10 |
| 500 | | |
| | T-Drive | 10 | | d1 mm | 3.5 | | L mm | 50 | | dk mm | 5.4 | | K mm | 2.8 | | h min mm | 35 | | t fix max mm | 20 |
| | | | |
| 3,5 X 60 (T10) | 3.5 | 60 | 5.4 | 2.8 | 41 | 10 |
| 200 | | |
| | T-Drive | 10 | | d1 mm | 3.5 | | L mm | 60 | | dk mm | 5.4 | | K mm | 2.8 | | h min mm | 41 | | t fix max mm | 24 |
| | | | |
| 4 X 70 (T15) | 4.0 | 70 | 6.2 | 3.3 | 47 | 15 |
| 200 | | |
| | T-Drive | 15 | | d1 mm | 4.0 | | L mm | 70 | | dk mm | 6.2 | | K mm | 3.3 | | h min mm | 47 | | t fix max mm | 28 |
| | | | |
| 4,5 X 50 (T20) | 4.5 | 50 | 6.8 | 3.4 | 35 | 20 |
| 200 | | |
| | T-Drive | 20 | | d1 mm | 4.5 | | L mm | 50 | | dk mm | 6.8 | | K mm | 3.4 | | h min mm | 35 | | t fix max mm | 20 |
| | | | |
| 4,5 X 60 (T20) | 4.5 | 60 | 6.8 | 3.4 | 41 | 20 |
| 200 | | |
| | T-Drive | 20 | | d1 mm | 4.5 | | L mm | 60 | | dk mm | 6.8 | | K mm | 3.4 | | h min mm | 41 | | t fix max mm | 24 |
| | | | |
| 4,5 X 70 (T20) | 4.5 | 70 | 6.8 | 3.4 | 47 | 20 |
| 200 | | |
| | T-Drive | 20 | | d1 mm | 4.5 | | L mm | 70 | | dk mm | 6.8 | | K mm | 3.4 | | h min mm | 47 | | t fix max mm | 28 |
| | | | |
| 4,5 X 80 (T20) | 4.5 | 80 | 6.8 | 3.4 | 53 | 20 |
| 200 | | |
| | T-Drive | 20 | | d1 mm | 4.5 | | L mm | 80 | | dk mm | 6.8 | | K mm | 3.4 | | h min mm | 53 | | t fix max mm | 32 |
| | | | |
